Getting started

What TestFlow is

TestFlow turns a plain-English description of a bench test into a running automation on your own instruments. You describe the test, TestFlow builds the sequence, generates the Python, and executes it over VISA.

Post-silicon validation is mostly the same three jobs, repeated: set something up on the bench, sweep it, and write down what happened. Almost all of that work is currently done in hand-written scripts and spreadsheets that only their author understands, which is why a board bring-up that should take a day takes a fortnight.

TestFlow replaces the scripting step. You tell it what instruments you have and what test you want. It builds a readable, editable sequence of steps, compiles that sequence into a standalone Python package, runs it on your hardware, and returns measured data with a verdict against the limits you stated.

The TestFlow builder: agent chat on the left, the generated workflow on the right, instruments docked along the bottom. — The builder. Chat on the left, the artifact you are working on the right, your bench docked underneath.

The four things you do

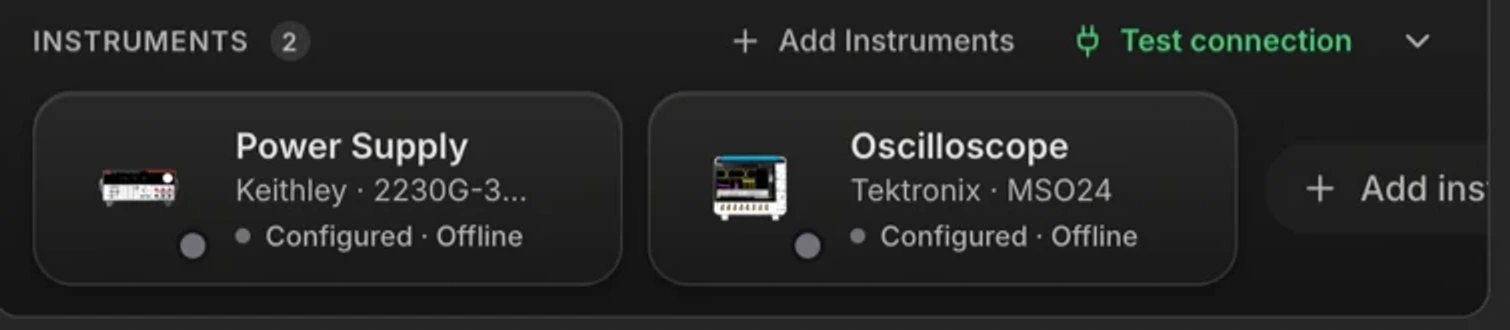

The instrument dock with a Keithley power supply and a Tektronix oscilloscope configured. — 1. Tell TestFlow what is on your bench.

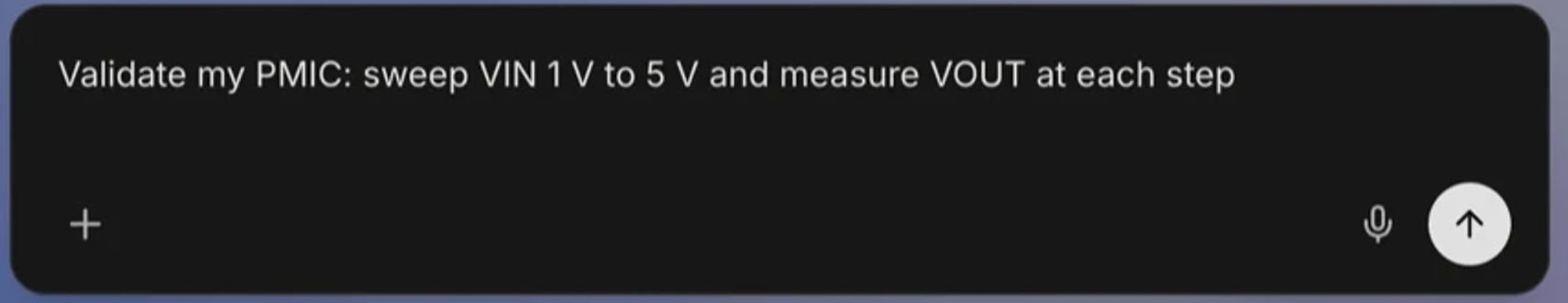

The dashboard input with a typed request: Validate my PMIC, sweep VIN 1 V to 5 V and measure VOUT at each step. — 2. Describe the test in plain English.

A power supply step on the canvas with three named actions and their parameters. — 3. Read the workflow it built, step by step.

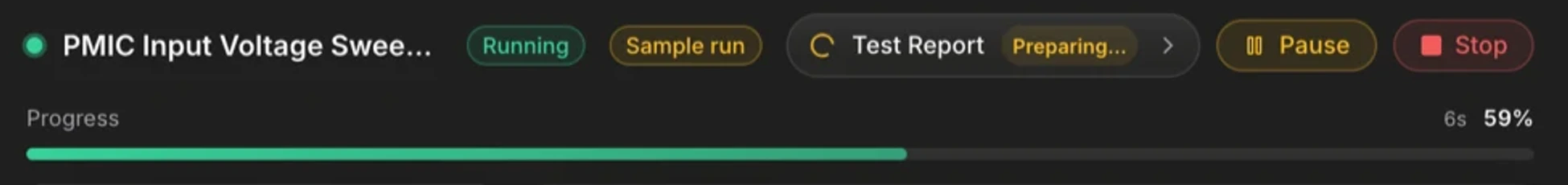

The Executor run bar with a Running badge and a progress bar. — 4. Run it, and watch it against your limits.

1
Tell TestFlow what is on your bench
Add each instrument by manufacturer and model and give it a VISA address. TestFlow only builds with commands that exist for the exact models you configured, so a Keithley 2200 gets Keithley syntax and a Keysight E36313A gets Keysight syntax.
2
Describe the test in plain English
One or two sentences is usually enough. Attach a datasheet and TestFlow will read the electrical characteristics table and use the real limits from it.
3
Read the workflow it built
The result is a sequence of named steps, not a wall of code: set-points, sweeps, settling delays, measurements, and the acceptance limit on each measurement. Change anything you disagree with, by asking or by hand.
4
Run it
Simulate in the browser to check the shape of the sequence, then run it on the real bench through the desktop app. Every run produces measured rows, a pass or fail per reading, and an exportable report.

What is in the box

The agent

Builds and edits the workflow, proposes bench changes, writes plans, wires schematics, and starts runs.

Preview

The workflow itself: every step in order, with its instrument, its actions, and its limits.

Code

The Python package TestFlow generated. Yours to read, download, and run outside TestFlow.

Plans

A formal validation plan document: coverage matrix, per-test procedure, spec tables, approvals.

Report

What the run actually measured, against the limits, with charts and a verdict.

Schematic

The bench wiring, as an ordered hookup checklist between your instruments and the DUT.

Executor

Runs the test. Live progress, streaming log, measurement dashboard, run history.

The bench

Your instrument list, including modular chassis, power mainframes, and full ATE racks.

Who it is for

TestFlow is built for the people who own bring-up and characterisation: validation engineers, system application engineers, and hardware R&D leads at fabless semiconductor companies and at the module and board level. If your day involves a scope, a supply, a DMM, and a deadline, you are the user.

You do not need to write Python to use it, and you do not need to give up Python to use it. The generated package is a normal Python application on your machine.
